Pumpkin Kit Build Instructions

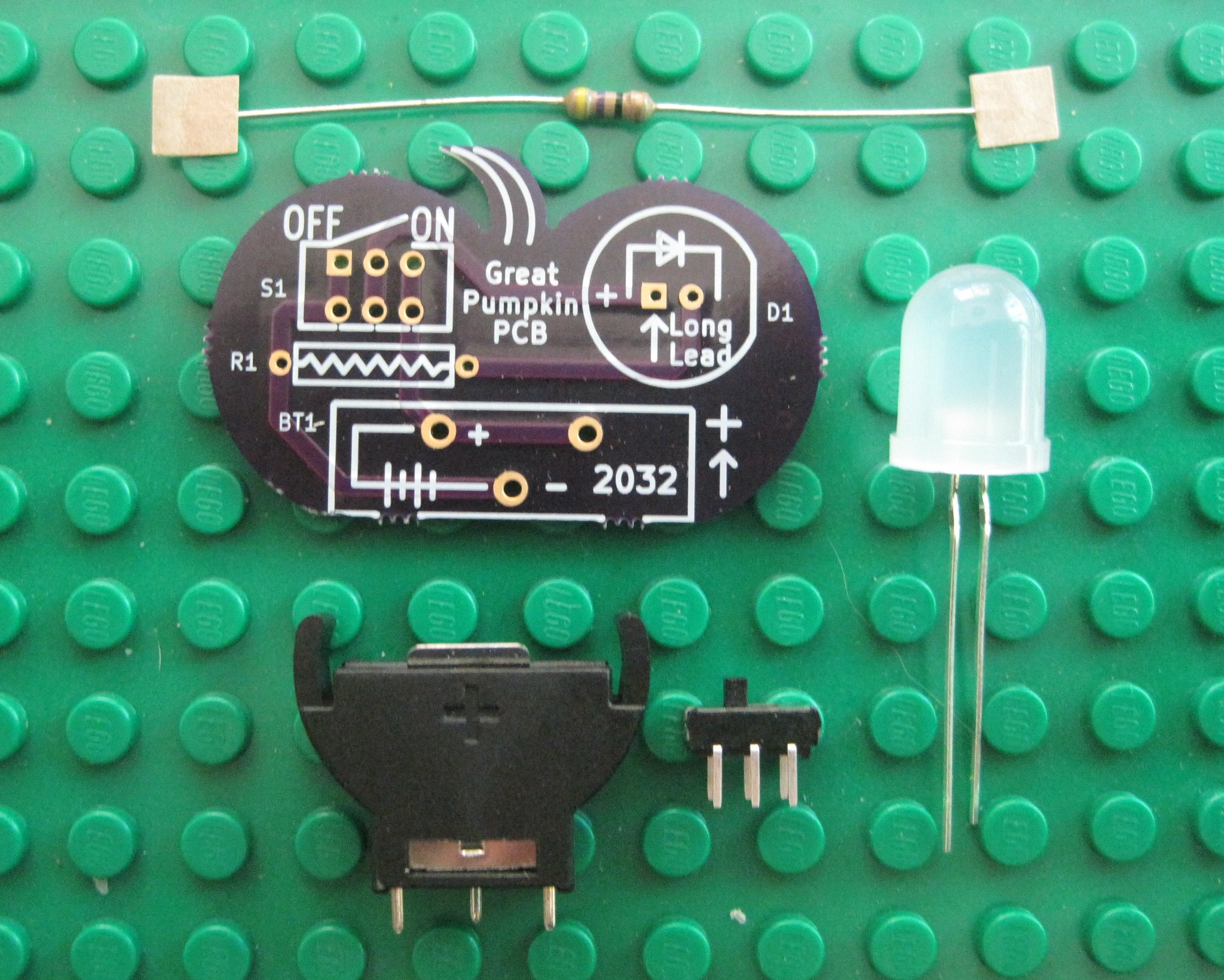

Step 1 – Check the parts included with the kit Step 1

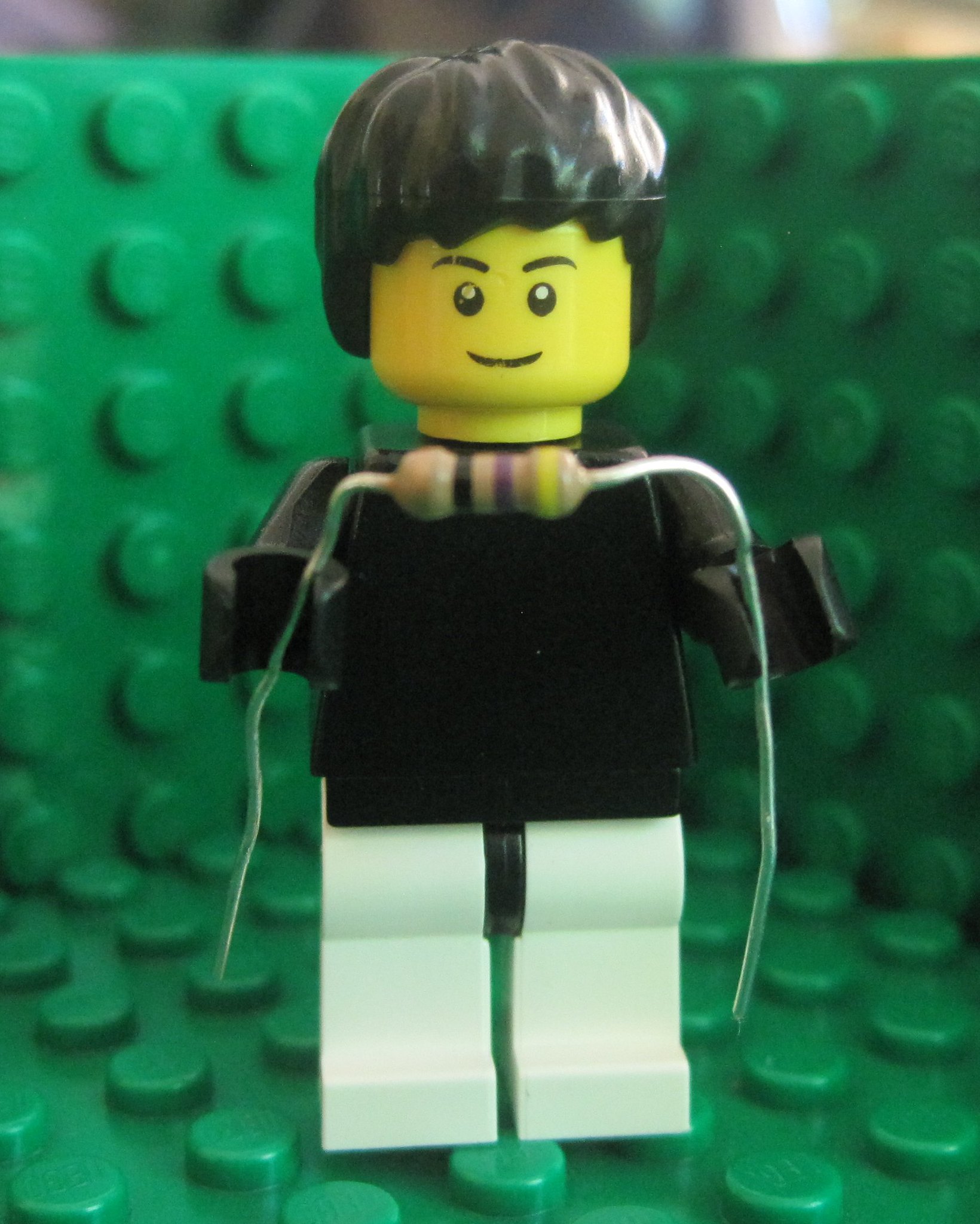

Step 2 – Find the resistor Step 2

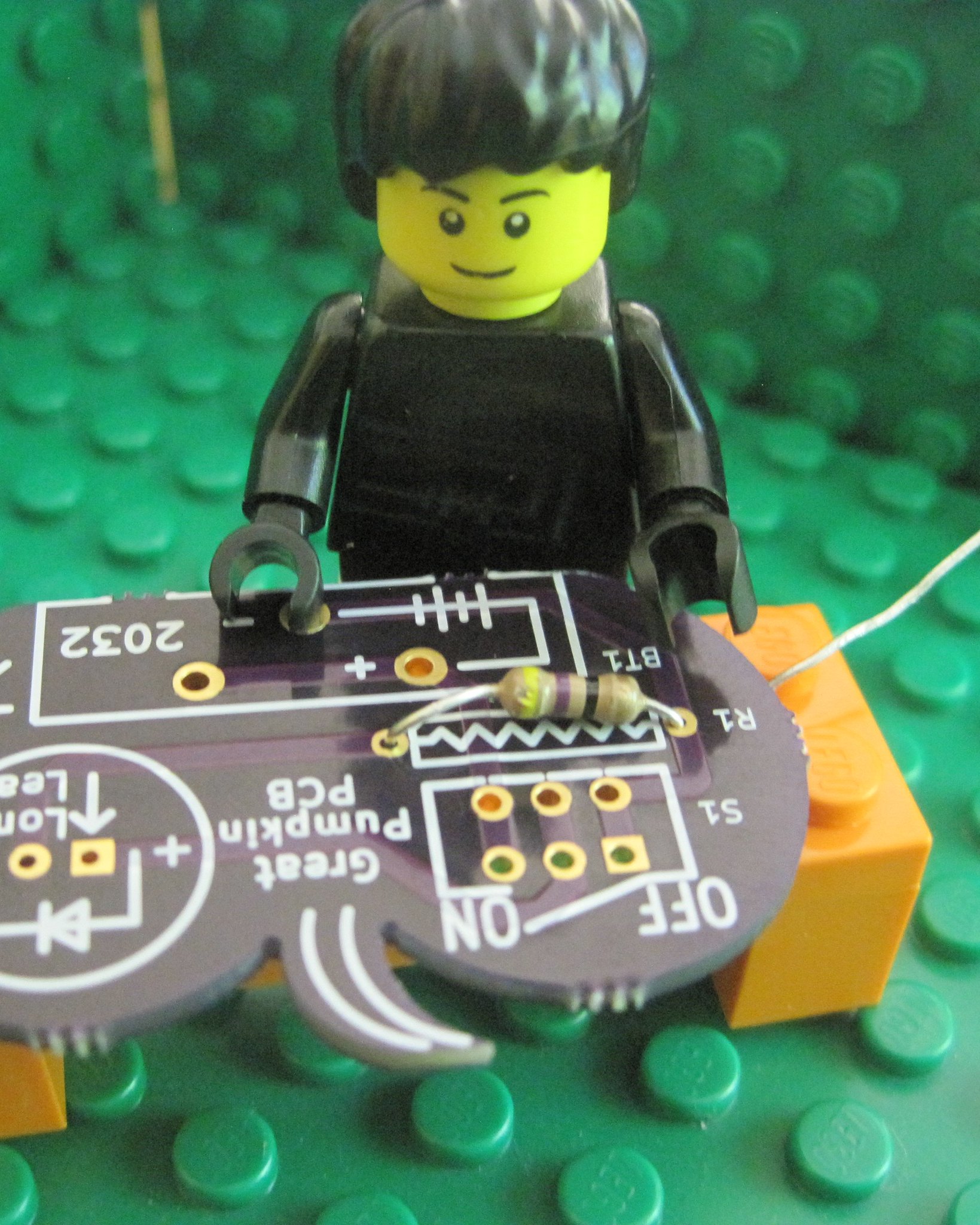

Step 3 – install the resistor into location R1 Step 3

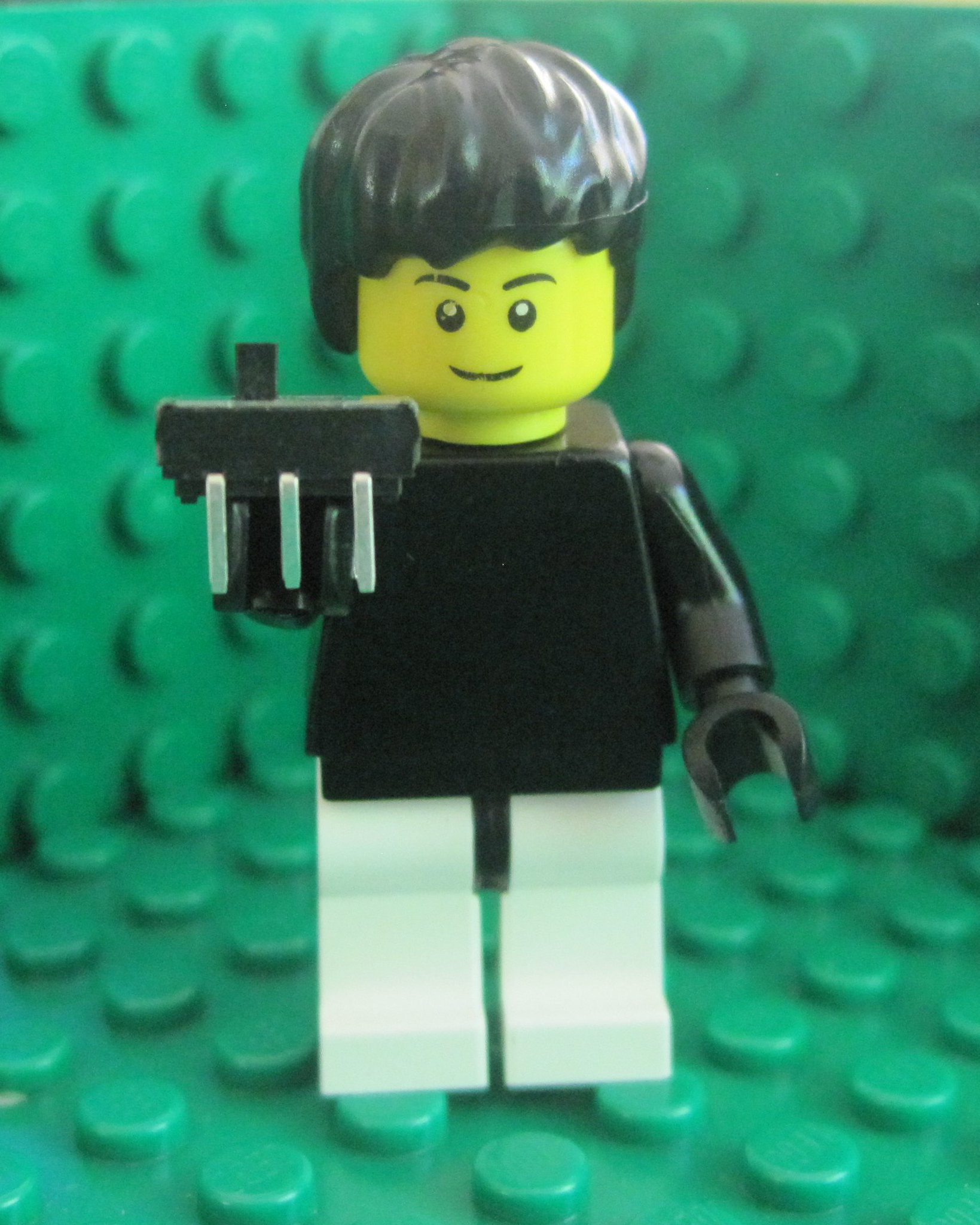

Step 4 – find the switch Step 4

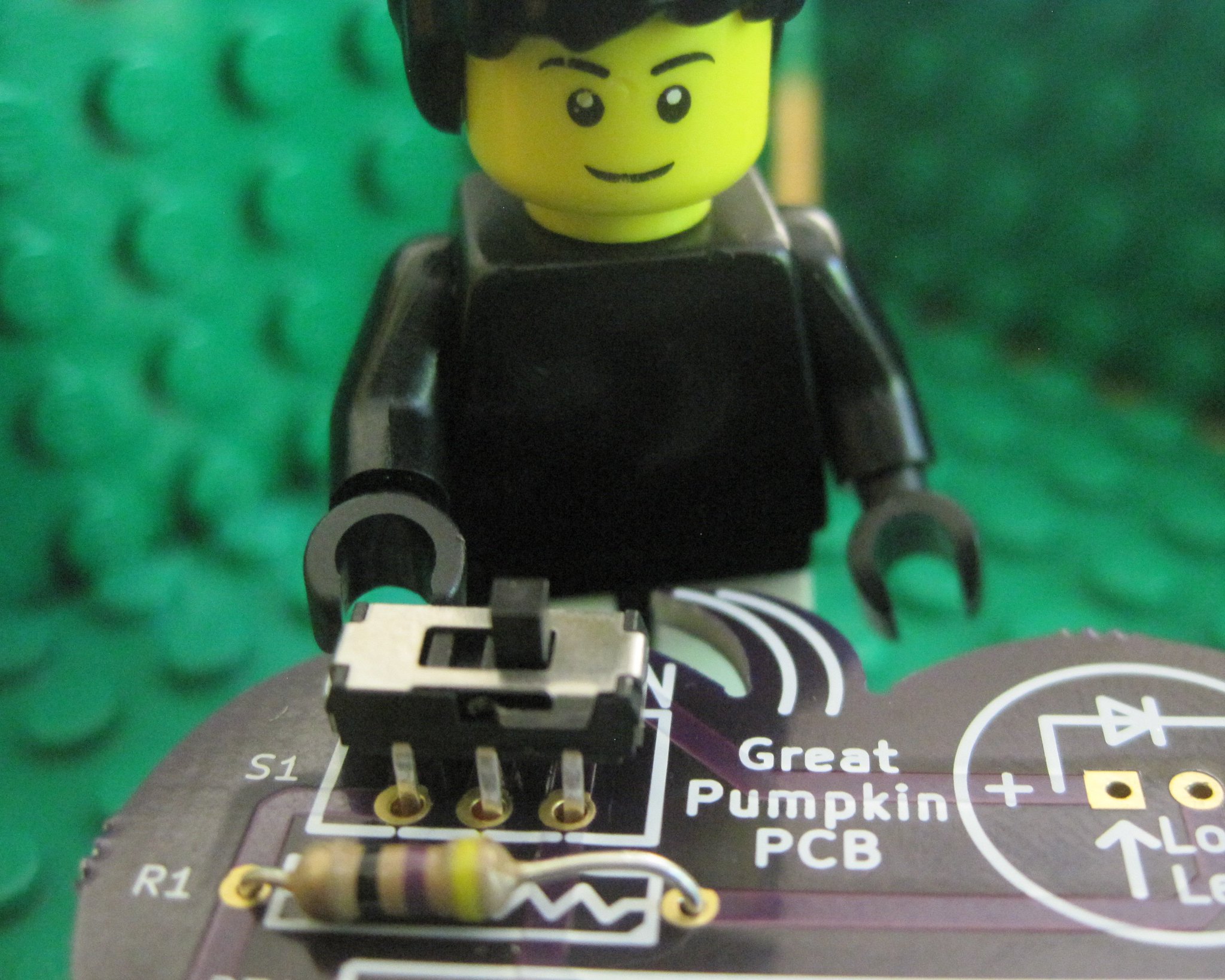

Step 5 – Install the switch into location S1 Step 5

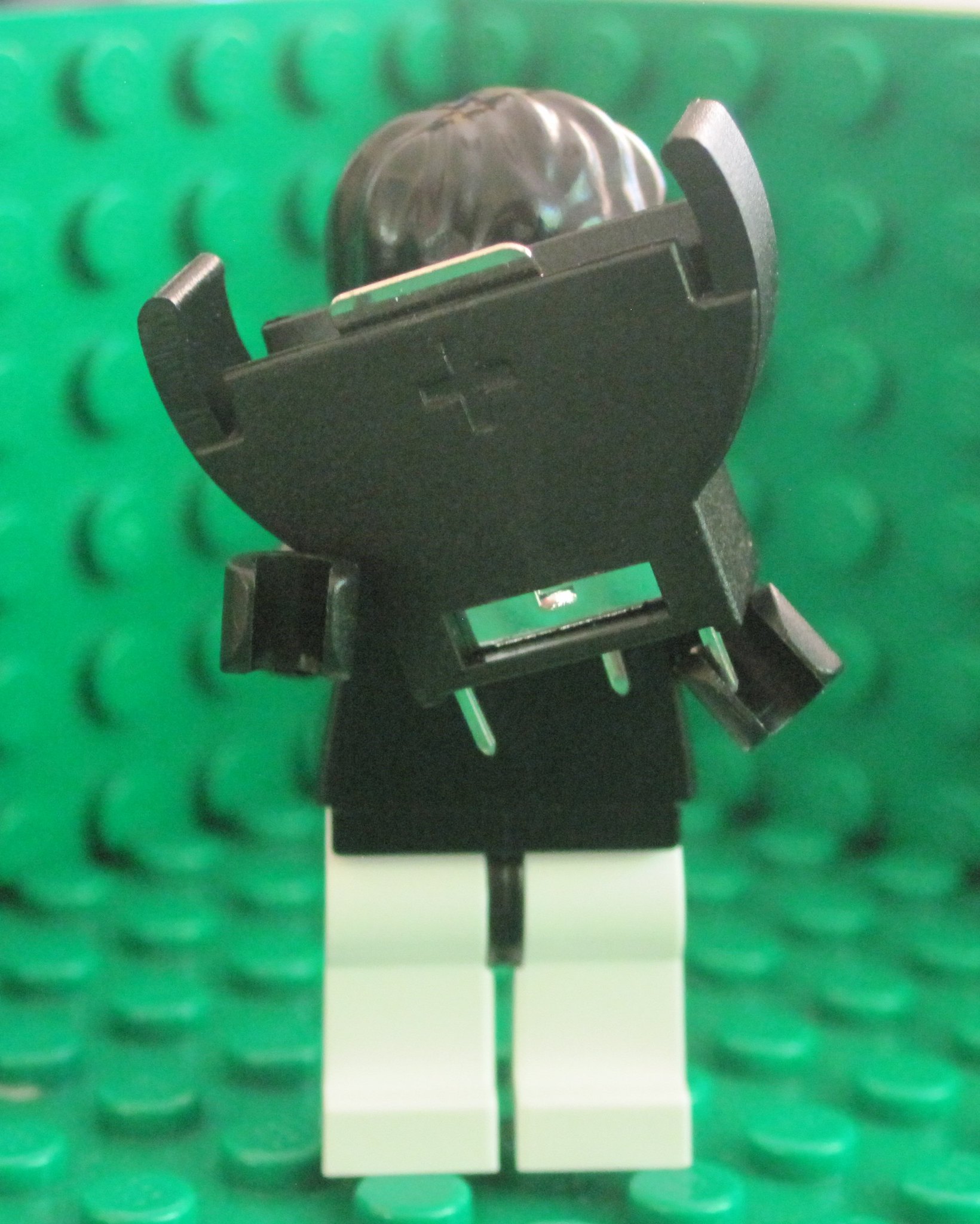

Step 6 – Find the battery holder Step 6

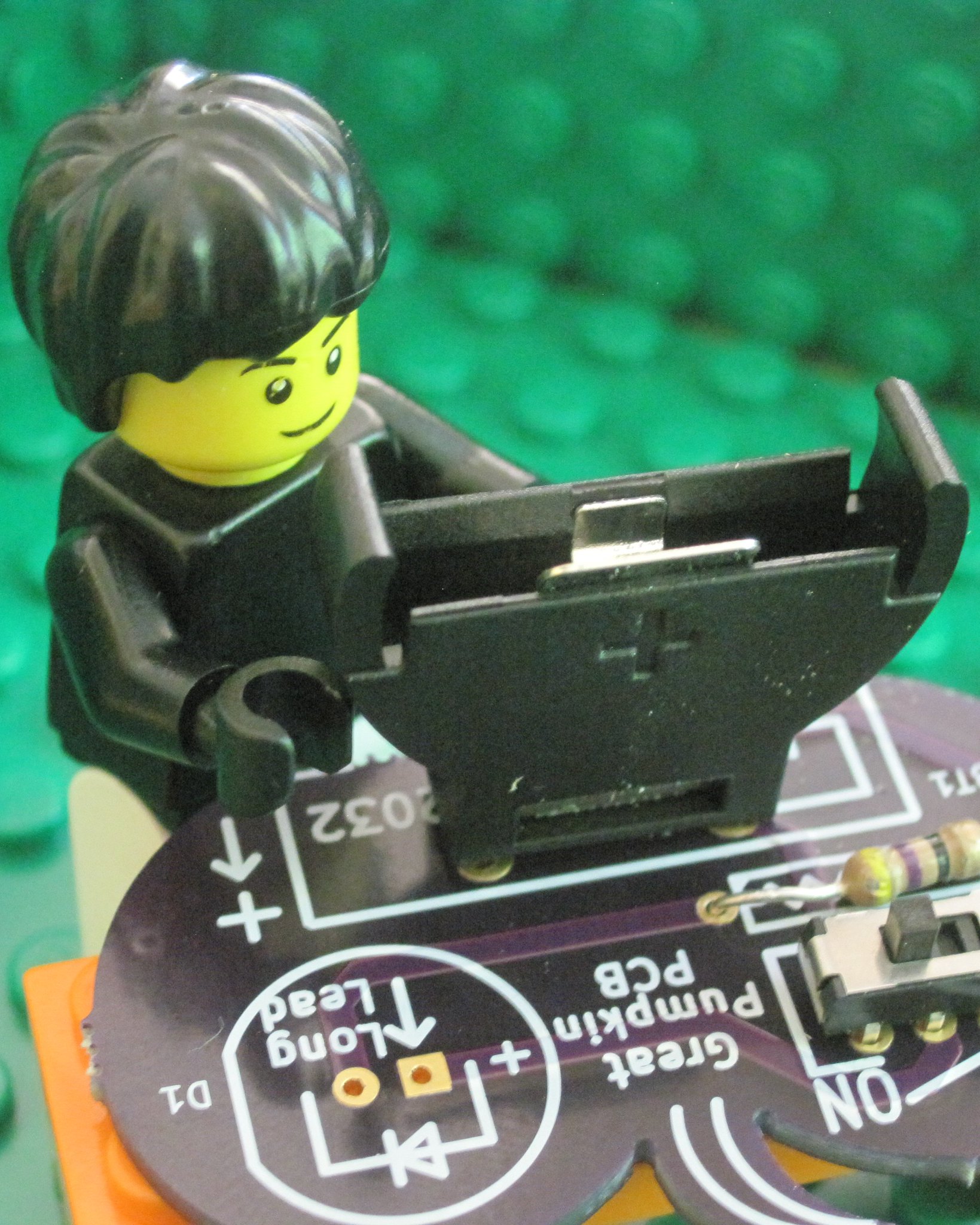

Step 7 – Install the battery holder into location BT1 Step 7

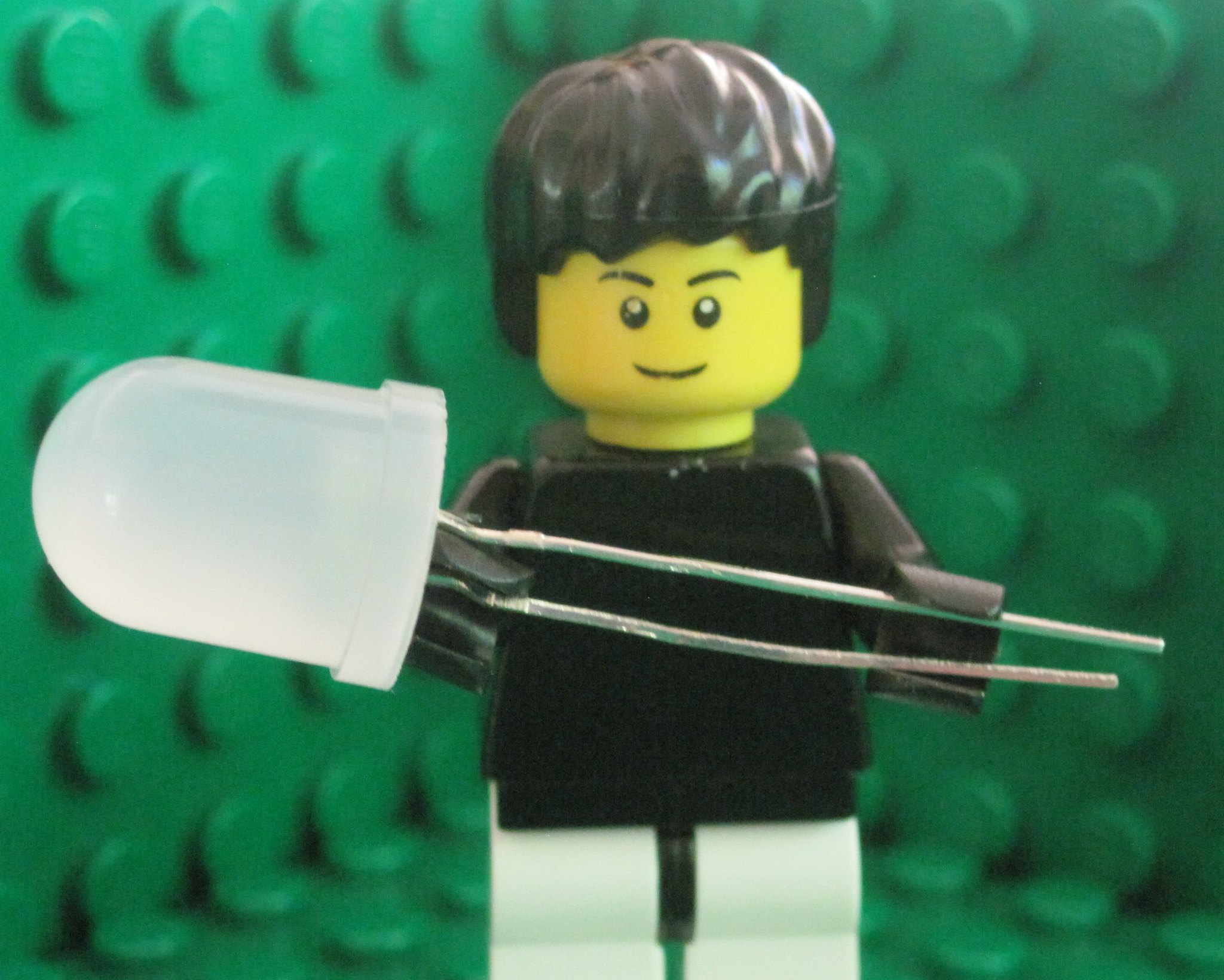

Step 8 – Find the 10mm LED Step 8

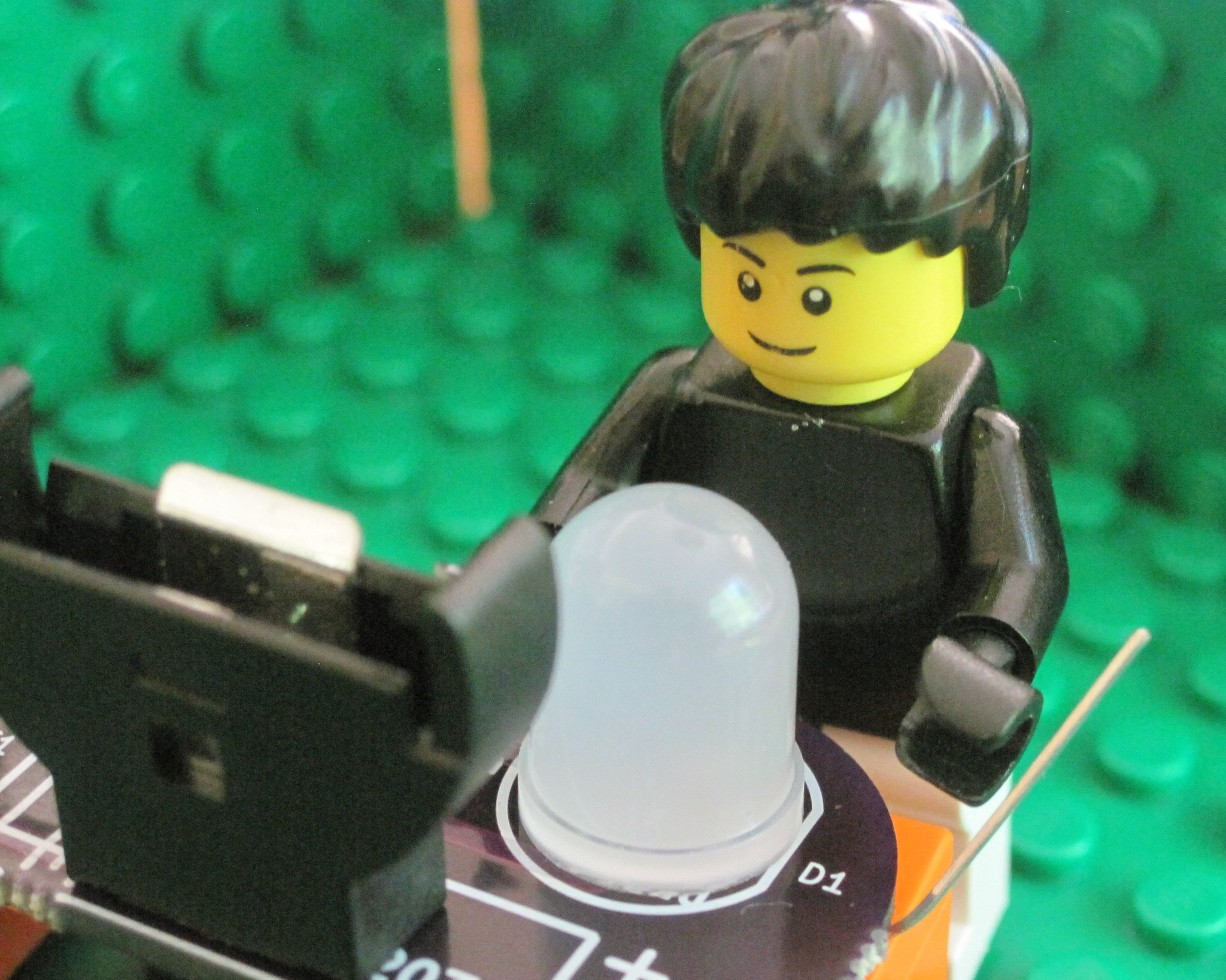

Step 9 – Install LED into location D1 with the longer lead of the LED into the square (+) pad Step 9

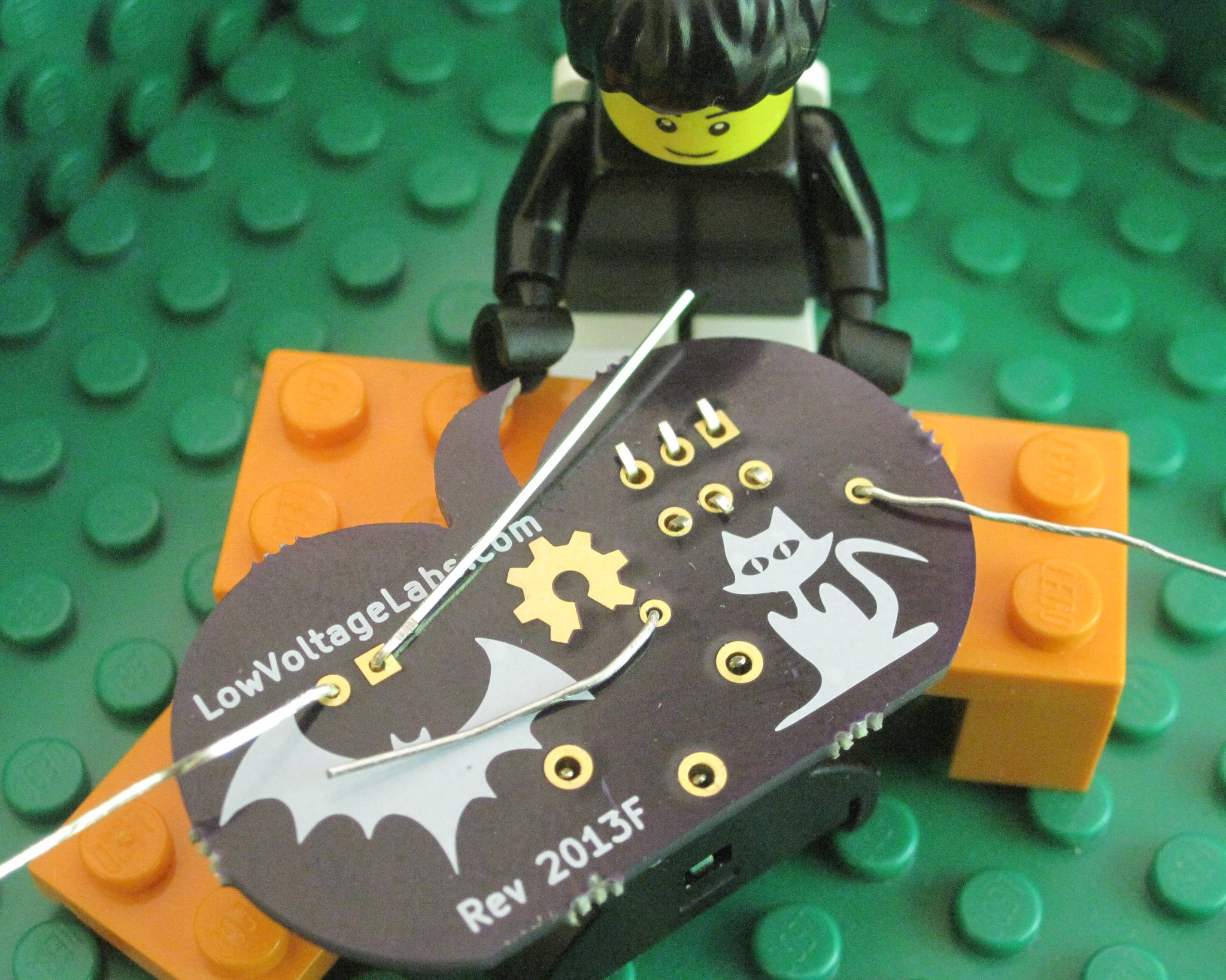

Step 10 – Turn over the printed circuit. Bend the leads of the parts to hold them in place. Step 10

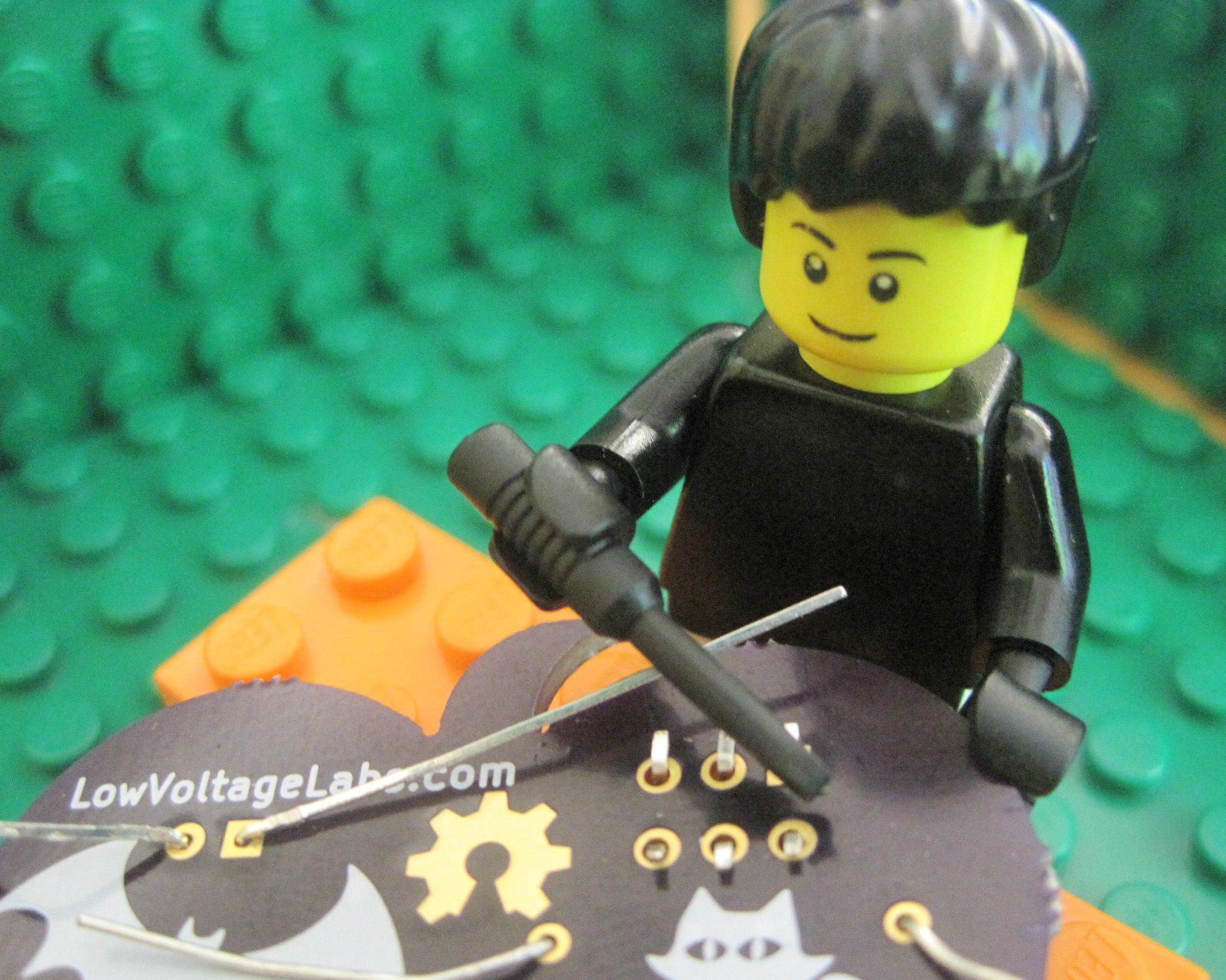

Step 11 – Solder the parts to the board Step 11

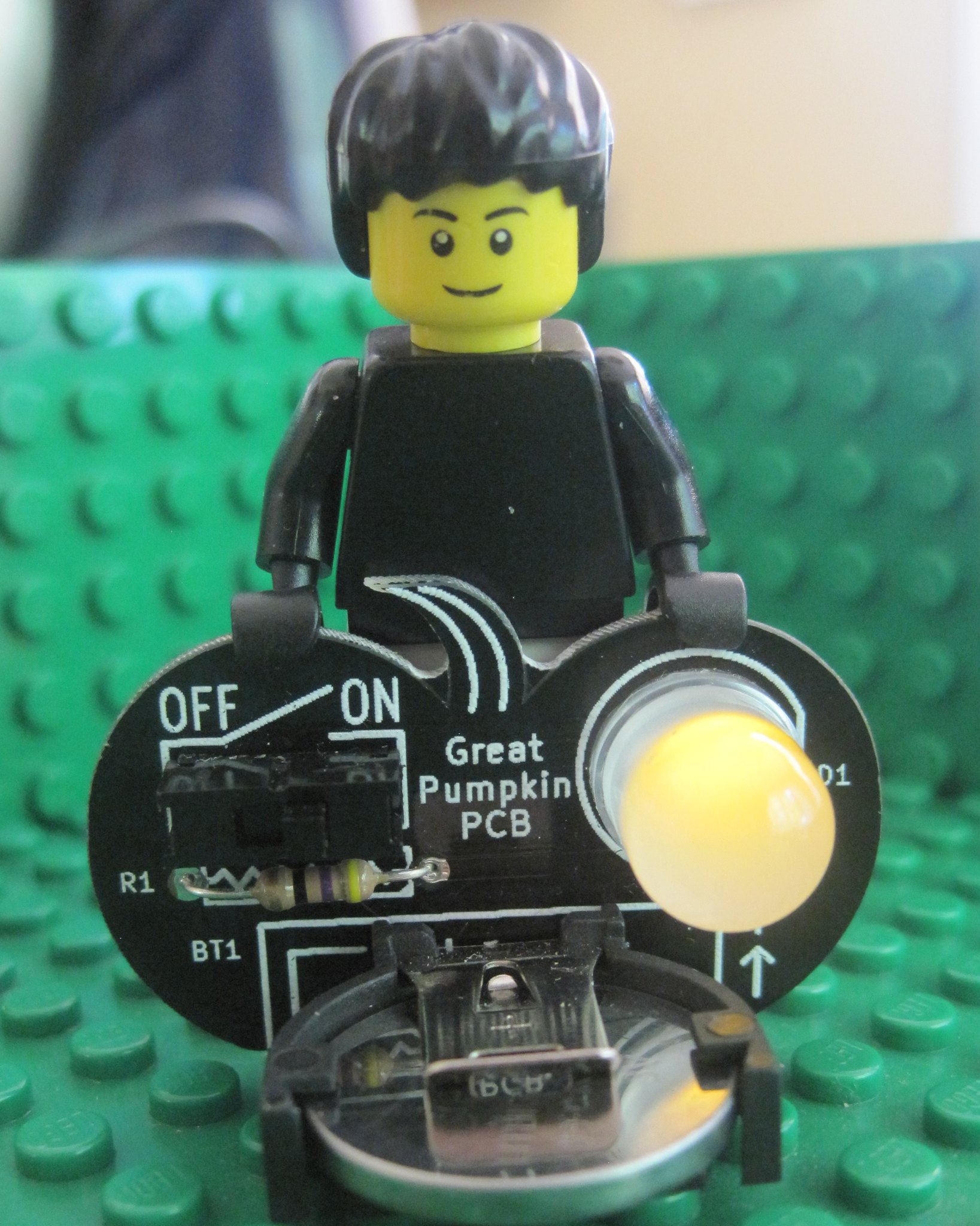

Step 12 – Install a 2032 battery with the + side up. Turn on the switch and watch the LED flicker! Step 12
