Snowman Kit Build Instructions

Snowman Kit Product Page

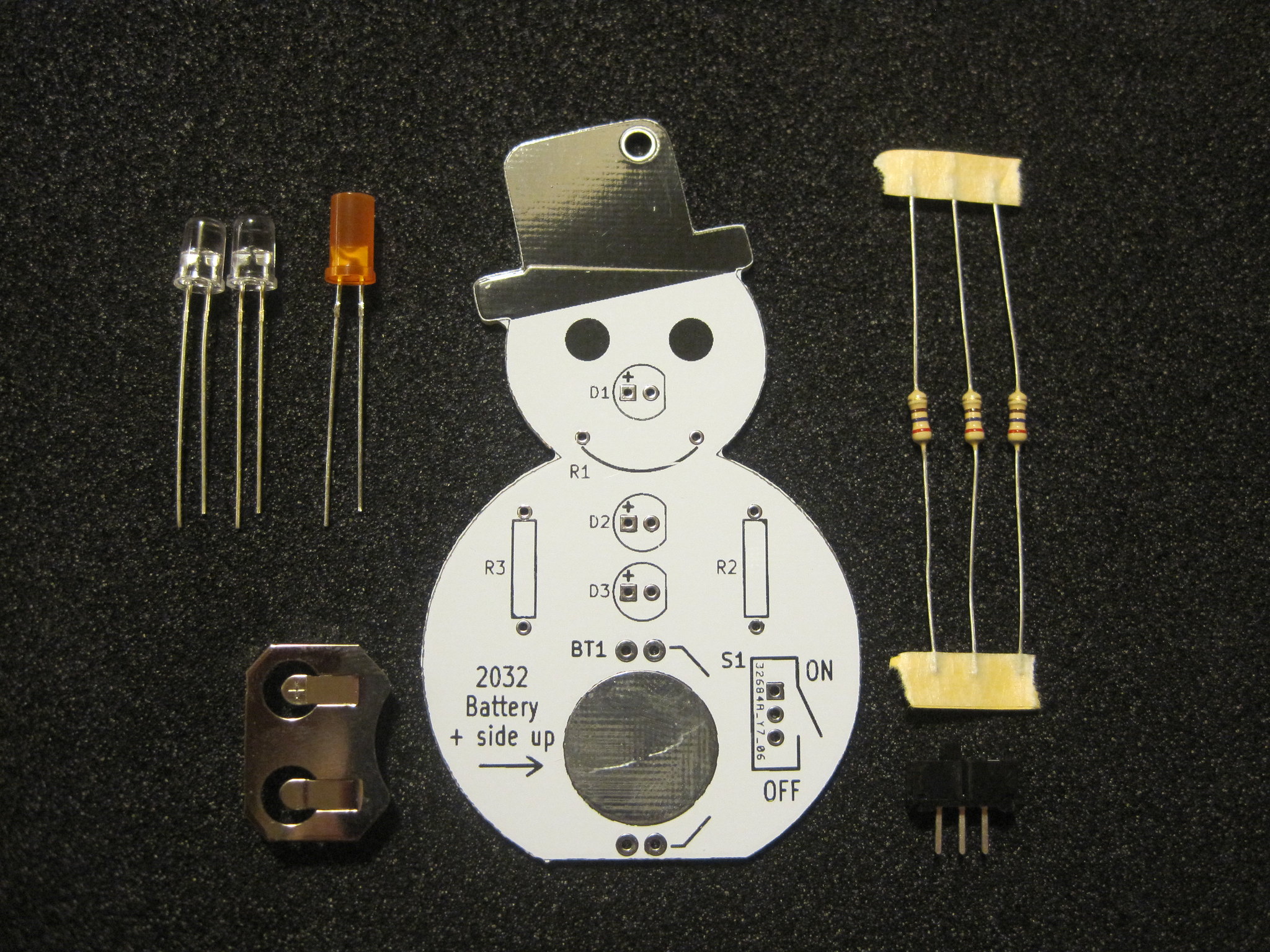

Step 1: Verify the parts included in the kit.

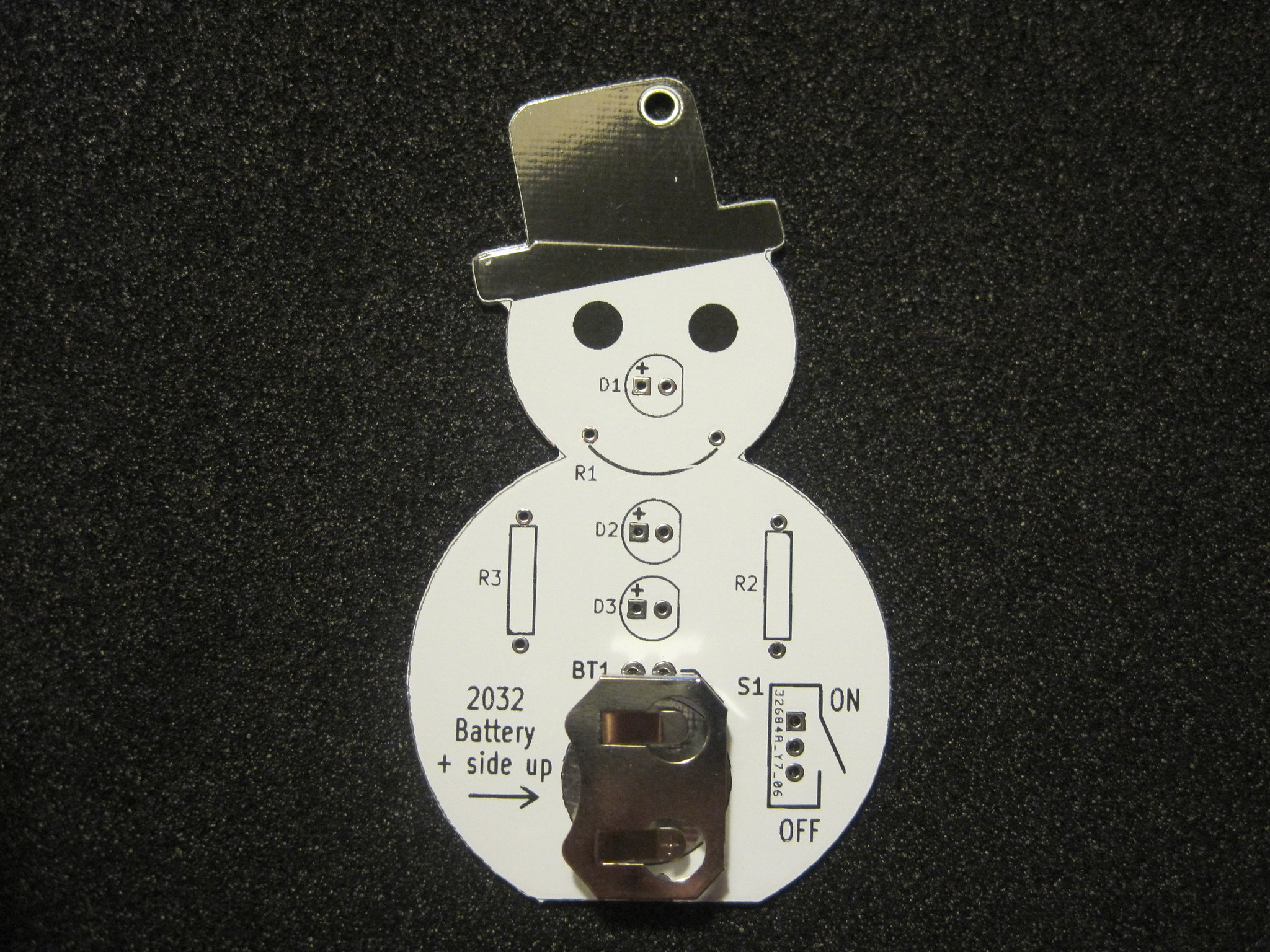

Step 2: Install the battery holder with the opening facing left.

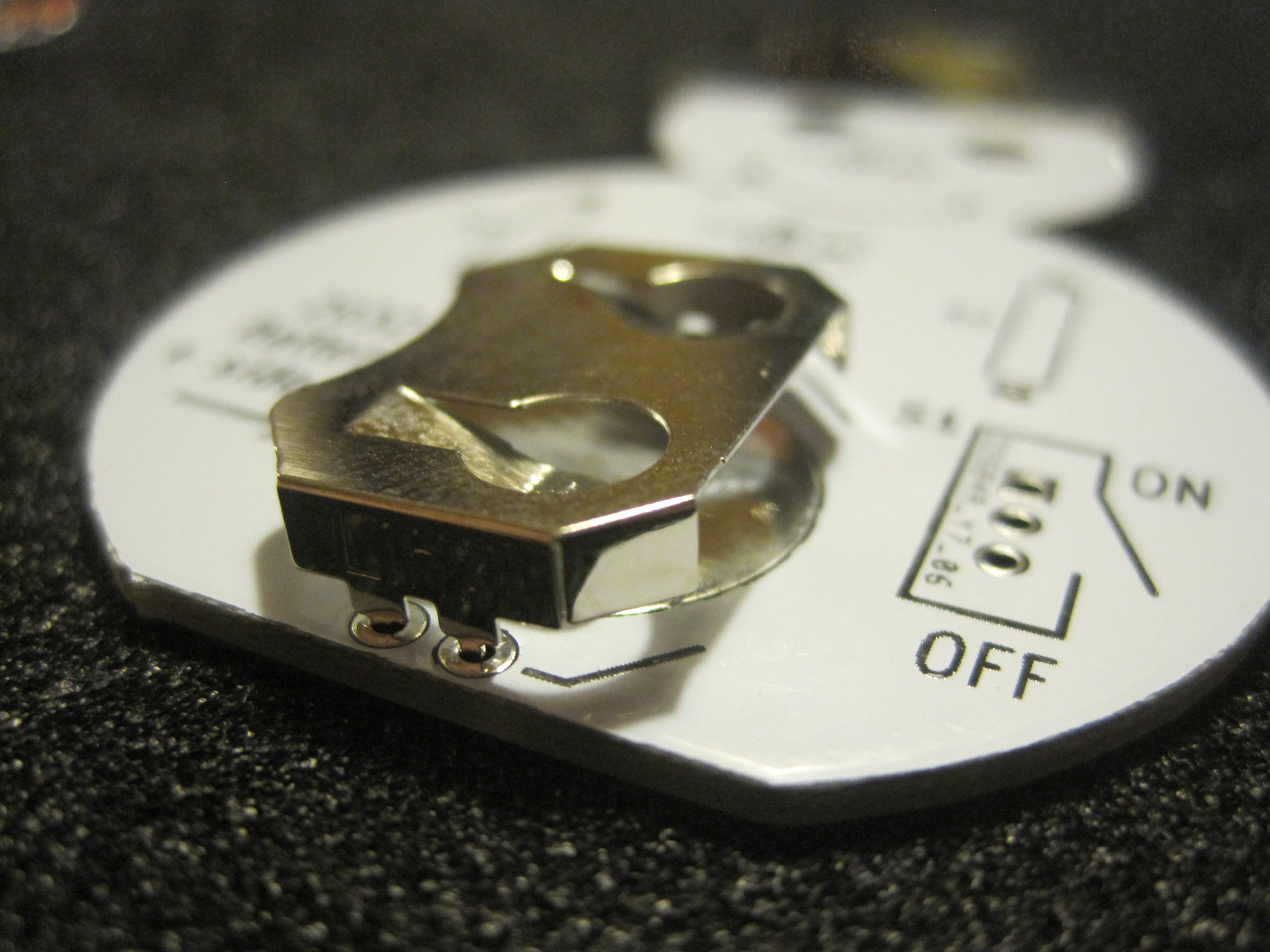

Step 3: Confirm the orientation of the battery holder.

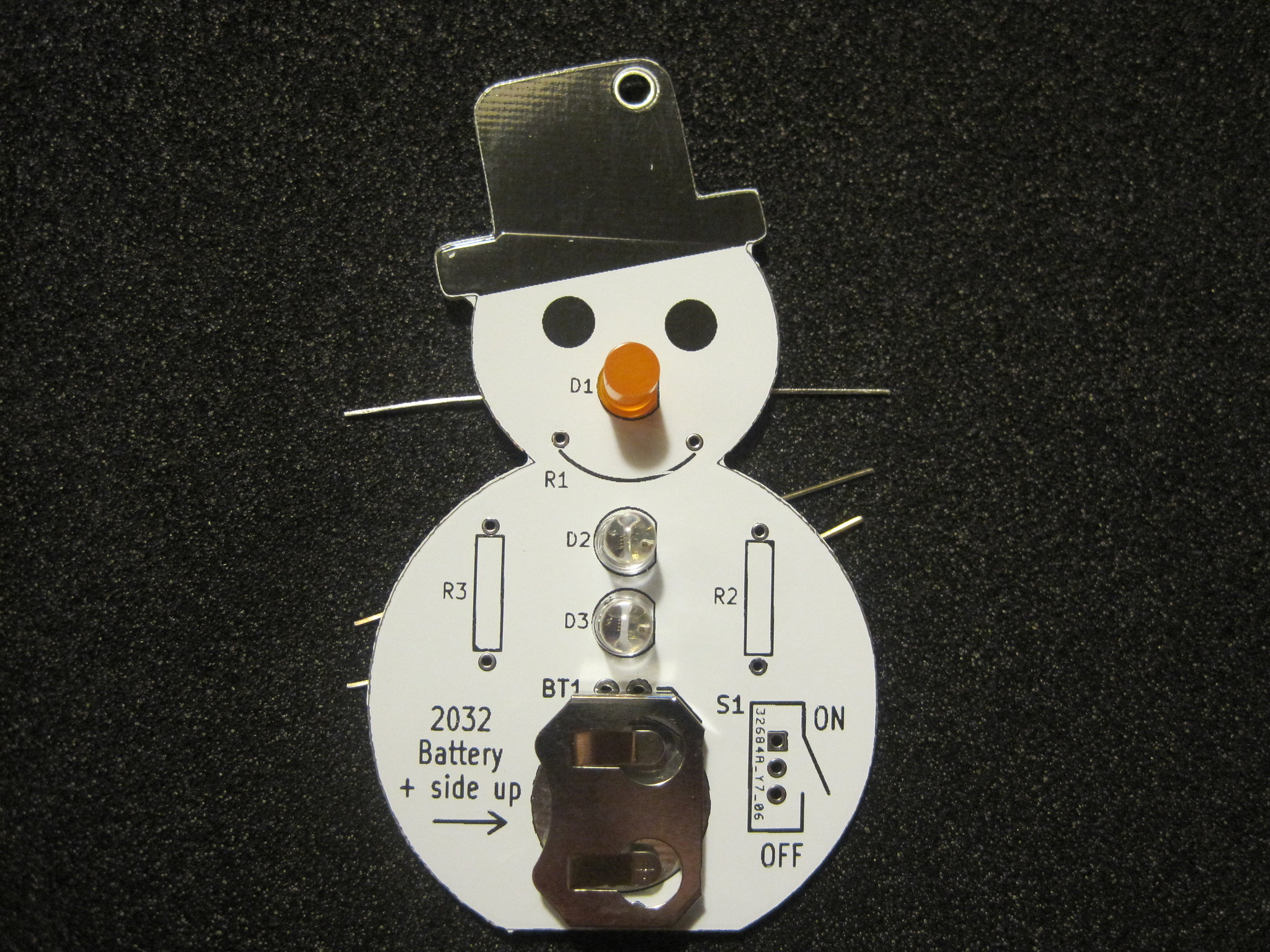

Step 4: Install LEDs D1, D2 and D3 ensuring the longer lead is connected to the positive (+) side.

Step 5: Fold the leads of the components over as you install them to secure them in place.

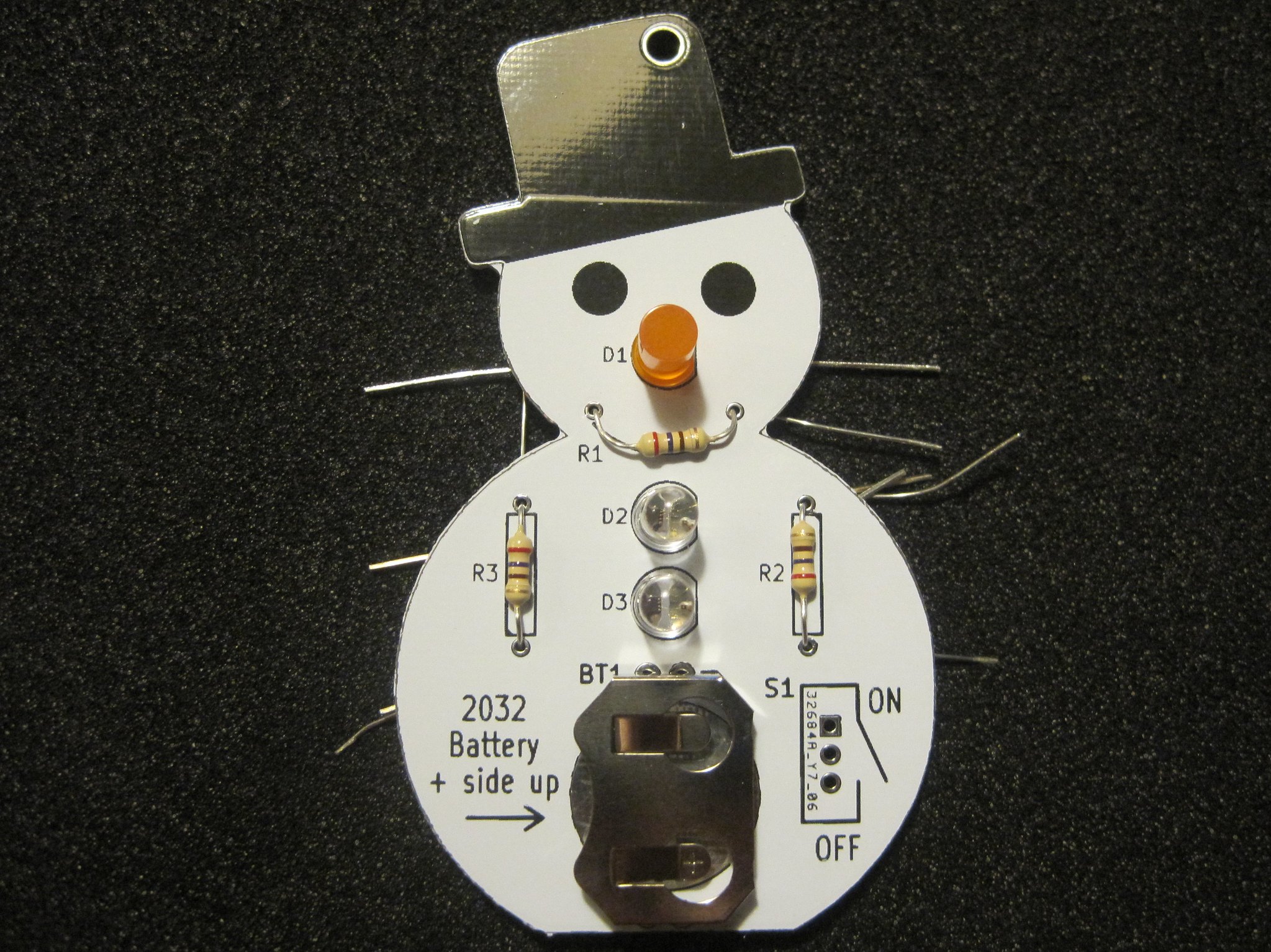

Step 6: Install resistors R1, R2 and R3.

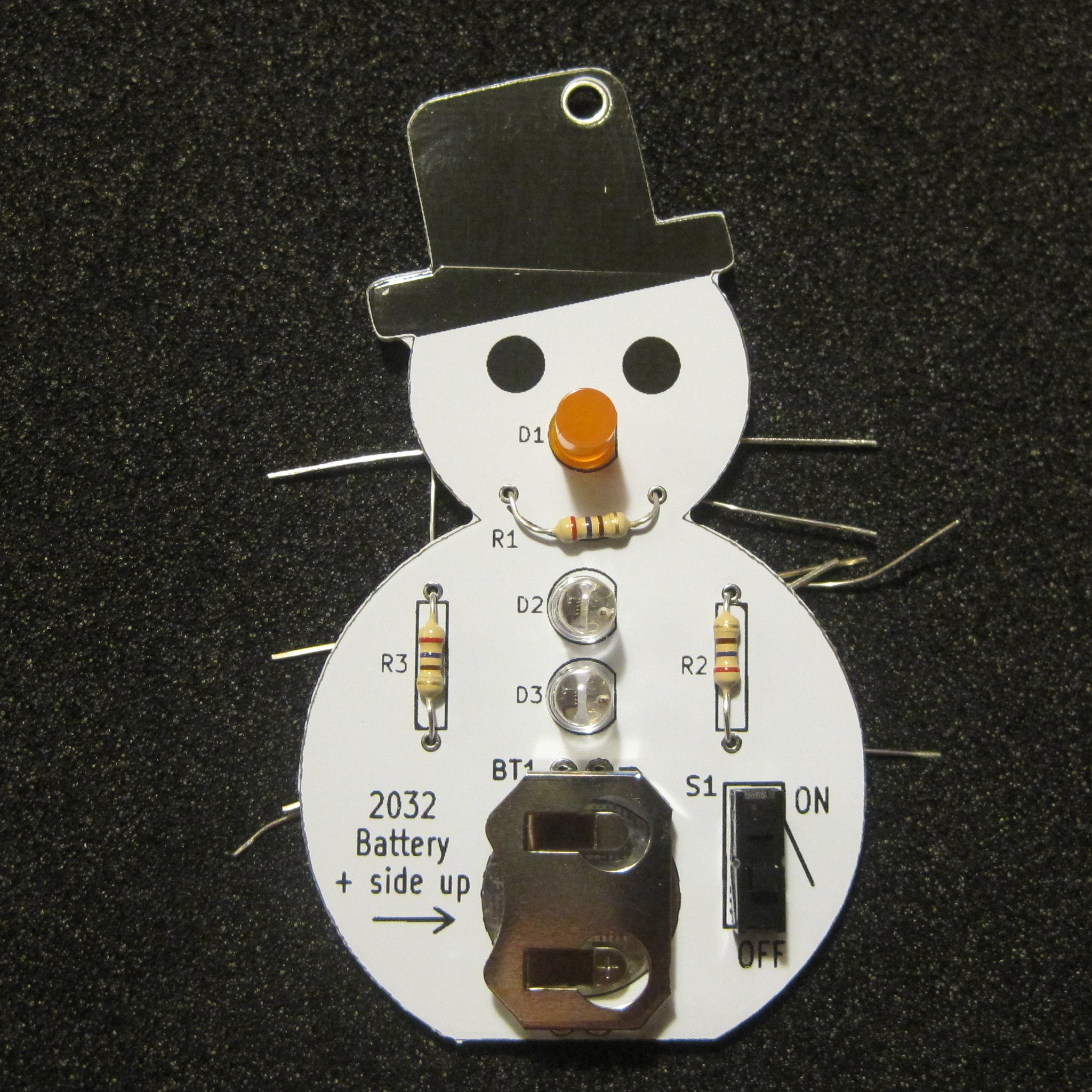

Step 7: Install switch S1.

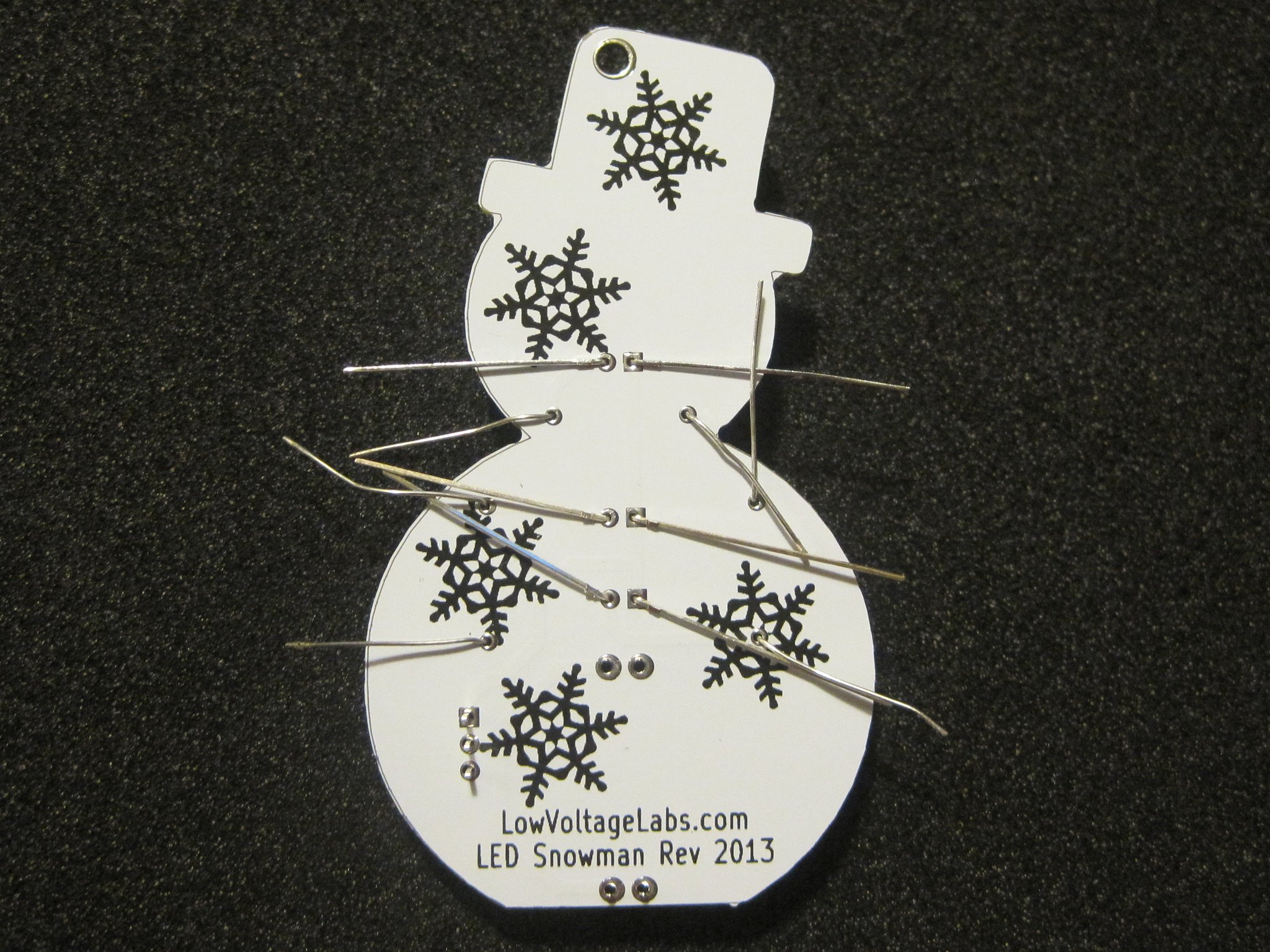

Step 8: Flip the PCB over and solder the components.

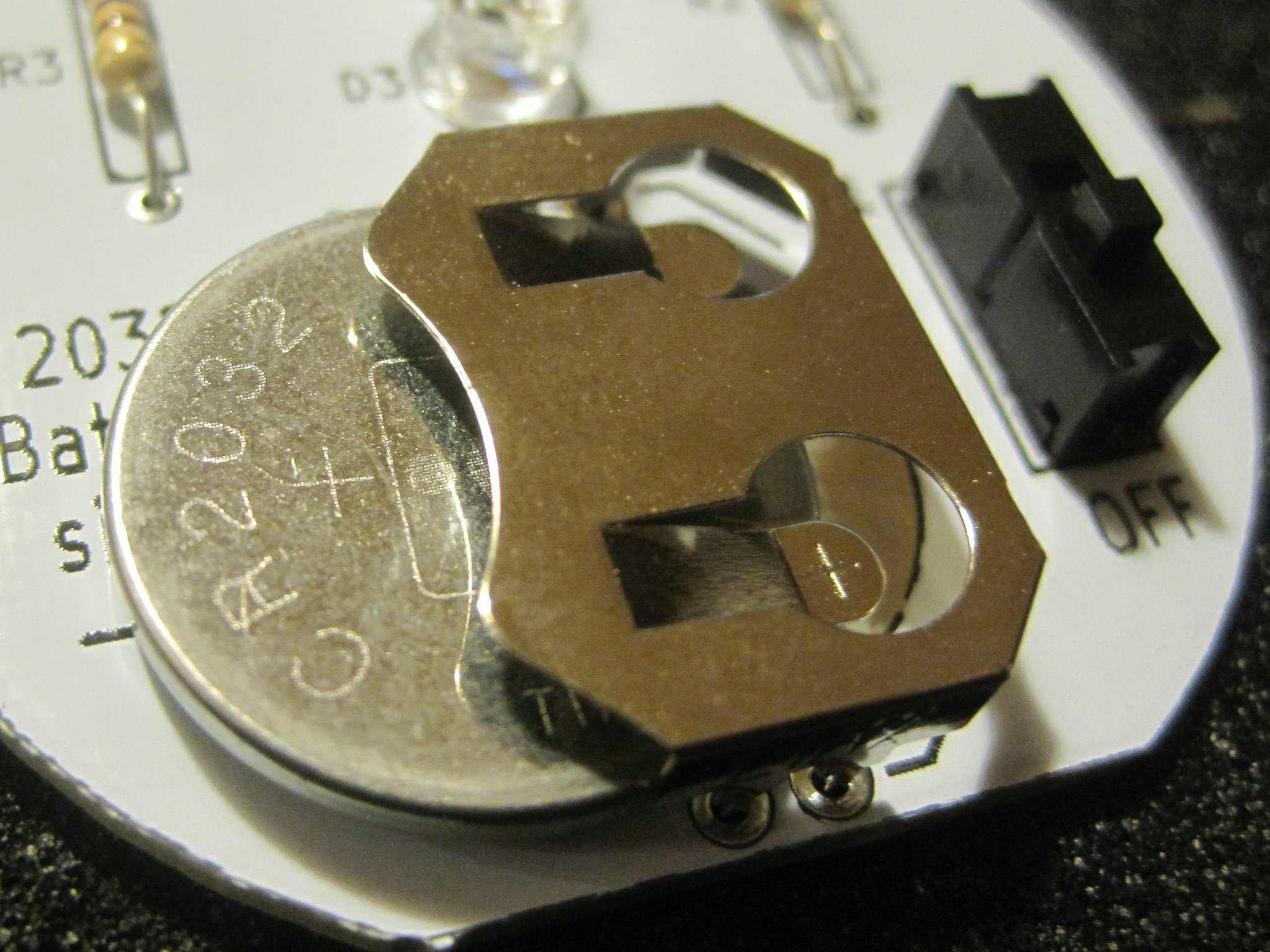

Step 9: Insert a 2032 battery with the positive side facing up.

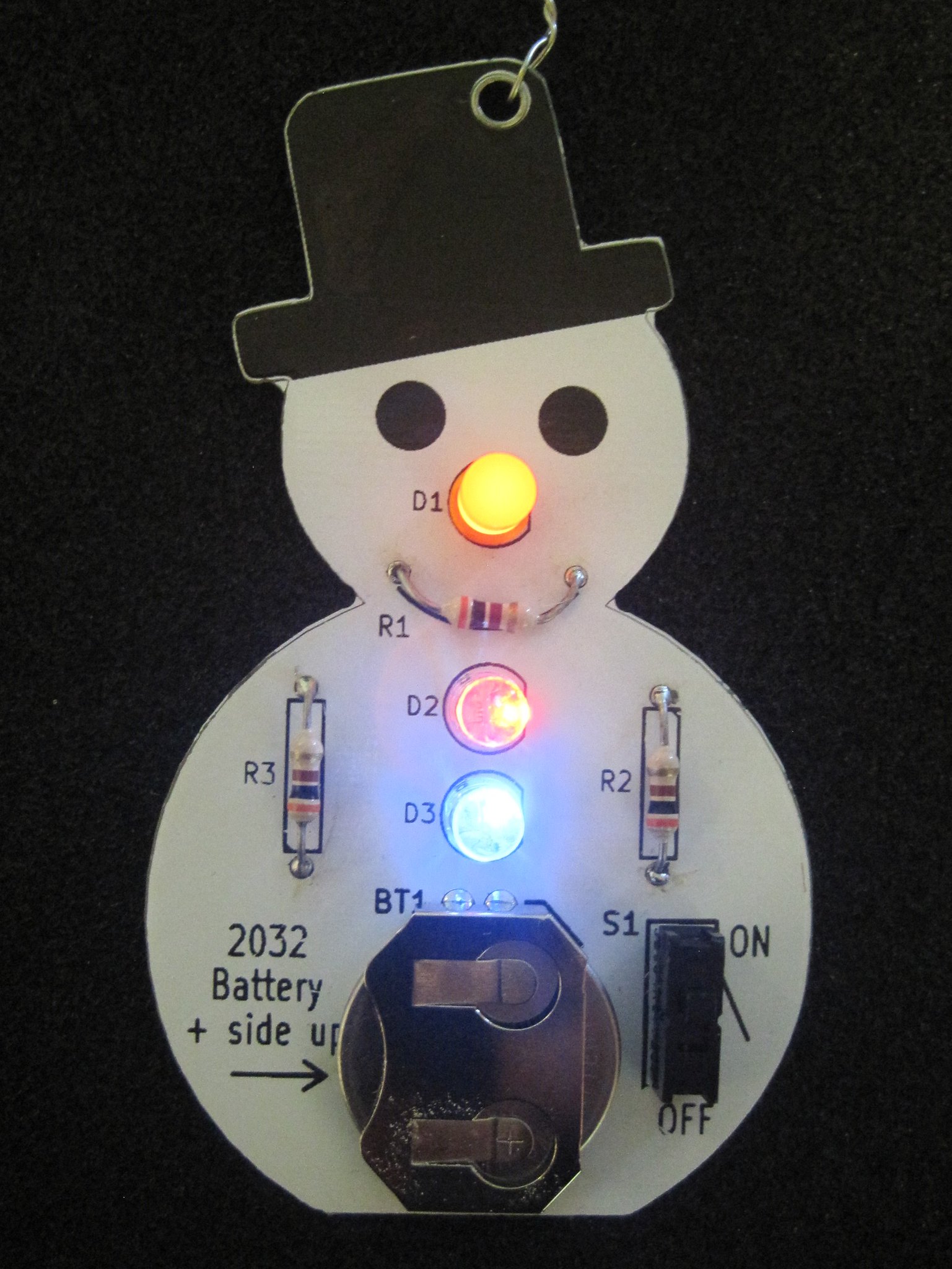

Step 10: Turn on the switch and watch the LEDs flash.
